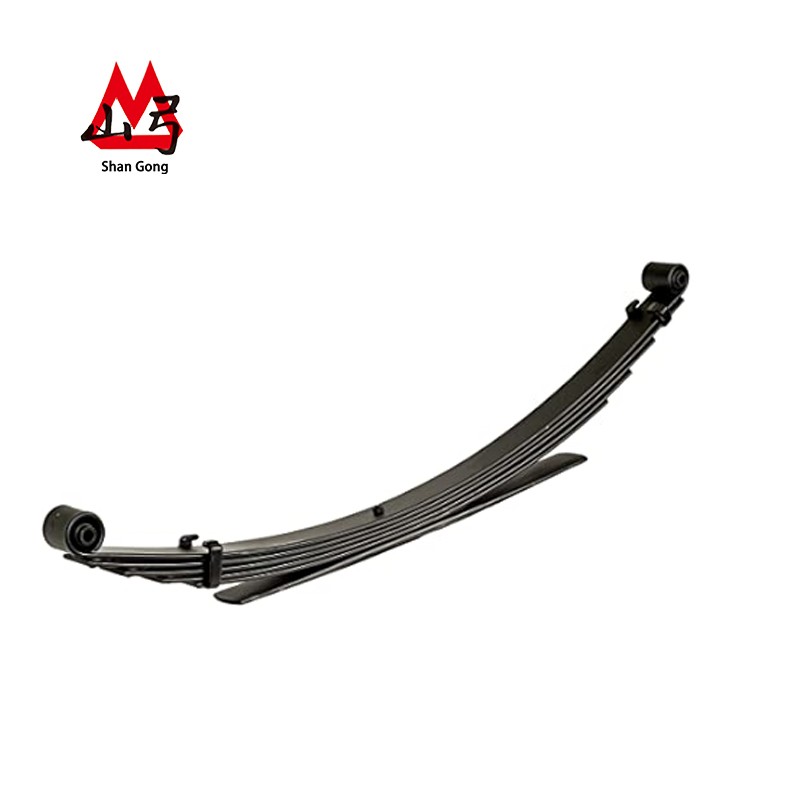

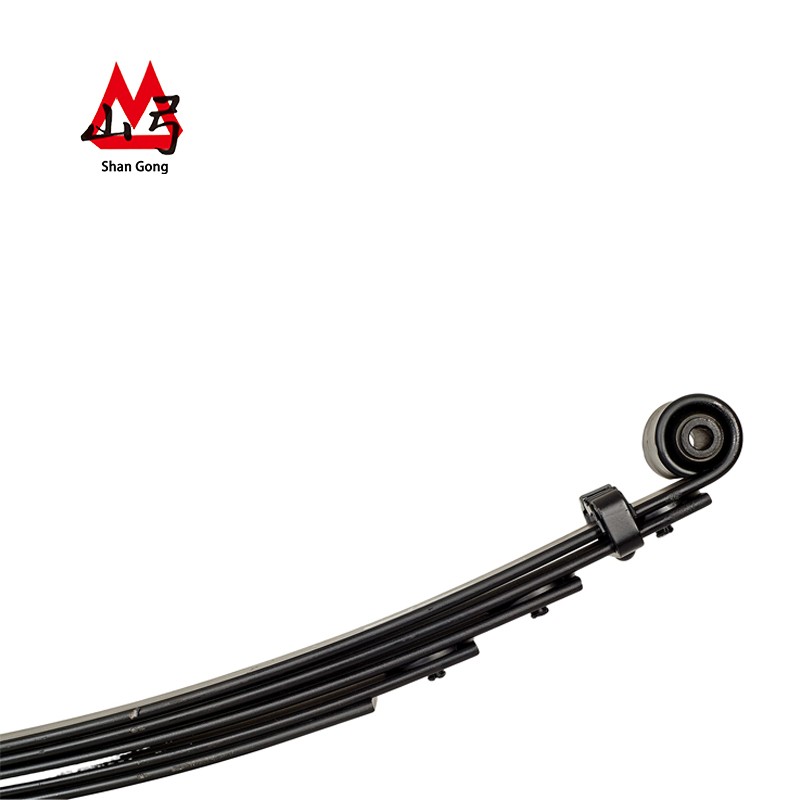

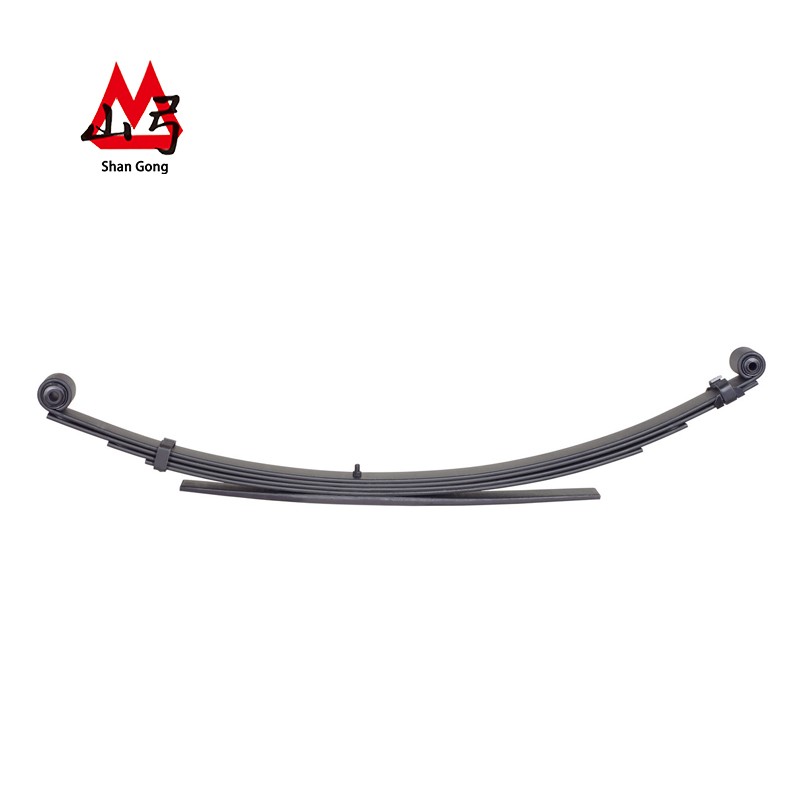

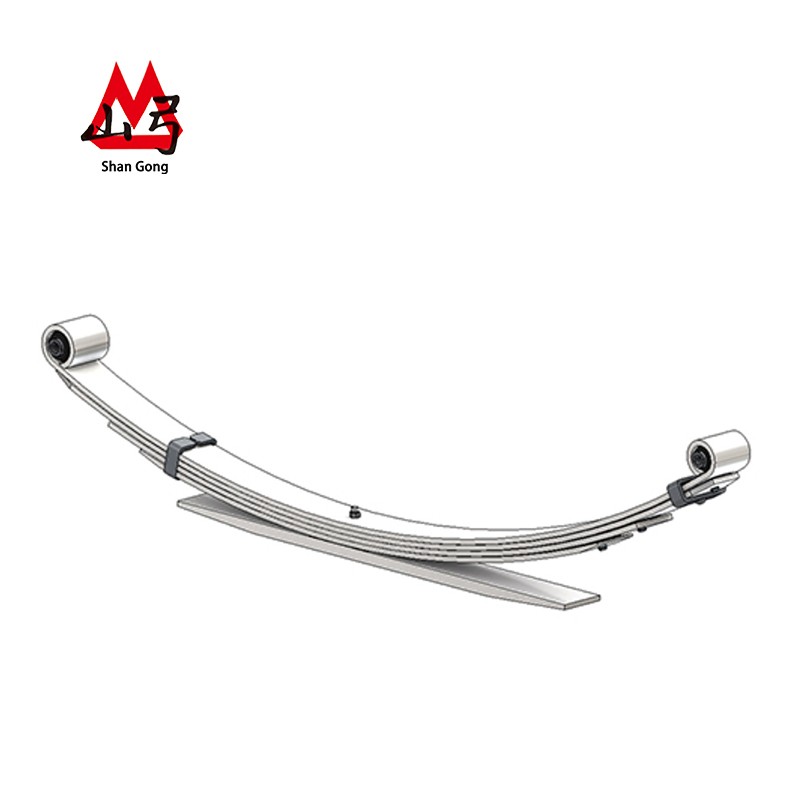

43-1261 1999 - 2004 Ford Super Duty rear leaf spring, 5(4/1) leaves, 3000 lbs capacity
DIMENSIONS:
Width: 3 in.

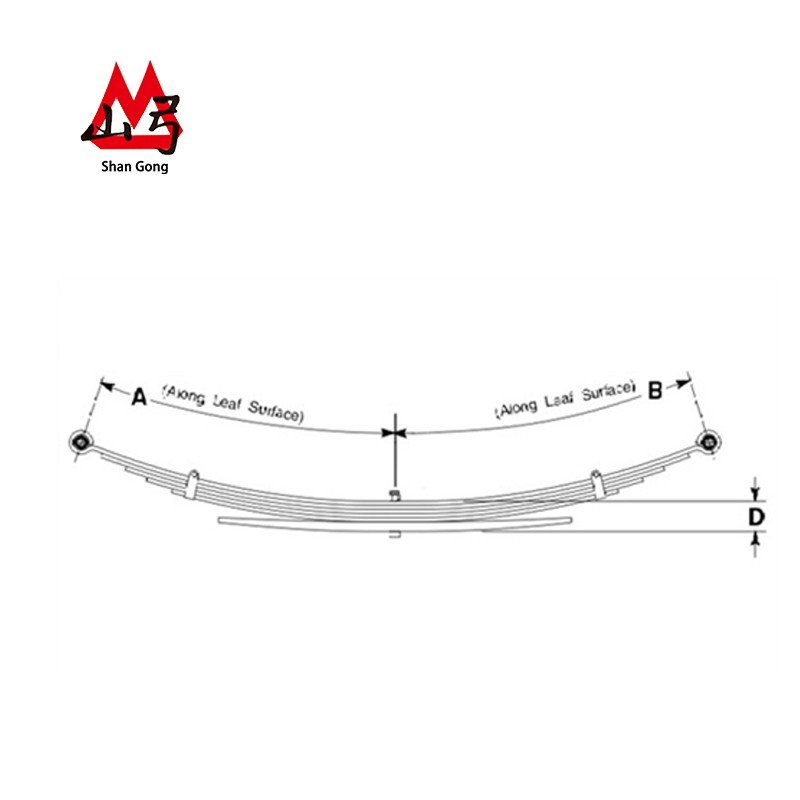

Short End (A) Dimension = 25 in.
Long End (B) Dimension = 33-1/8 in.
Leaves: 4/1
Leaf Arrangement: 4/341
1/750
A End - RB-245
B End - RB-244
Arch: 7-7/8 in.
Capacity:3000 lbs.
APPLICATIONS:
F250SD / F350SD (1999 - 2004)
CROSS REFERENCES:
F81A5560BE / F81Z5560BA / F81A5560BE / F81Z5560BA
Description
Leaf Spring Specifications:
| Load Rate | 3000 LB |
| Suspension Grade Type | Standard |
| Leaf Width | 3 IN |
| Axle Orientation | Rear |
| Helper Spring | No |
| Bushings Included | Yes |
| Length Axis 1 | 33.25 IN |
| Length Axis 2 | 25 IN |
| Pack Thickness | 2.14 IN |
| Spring Research Institute Number | 43-1261 |
| End 1 Attachment Type | Up Turned Eye |
| End 2 Attachment Type | Up Turned Eye |
| End 1 Bushing | RB244 |
| End 2 Bushing | RB245 |
| Free Arch Length | 7.875 IN |
| Grading Configuration | 4/341 2ND 1/750 |
| Leaves | 5 |
| Pack Quantity | 5 |
